Quanzhou Hengxin Paper Machinery Manufacture Co., LTD.
Our company's cultural philosophy is to take science and technology as the guidance, survive by quality, and seek development by reputation.
| Place of Origin: | Quanzhou, Fujian, China |
|---|---|
| Brand Name: | HENGXIN |
| Certification: | CE, BV and ISO |
| Model Number: | HX-CE-N2 |
| Minimum Order Quantity: | 1 set |
| Price: | $45,000/set |
| Packaging Details: | Pallet |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 sets/month |
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| Type: | Towel Folding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support |
| Color: | Customized | Packing Way: | Pallet |
| Application: | Paper Industrial Production | ||
| High Light: | tissue folding machine,hand towel machine |
||

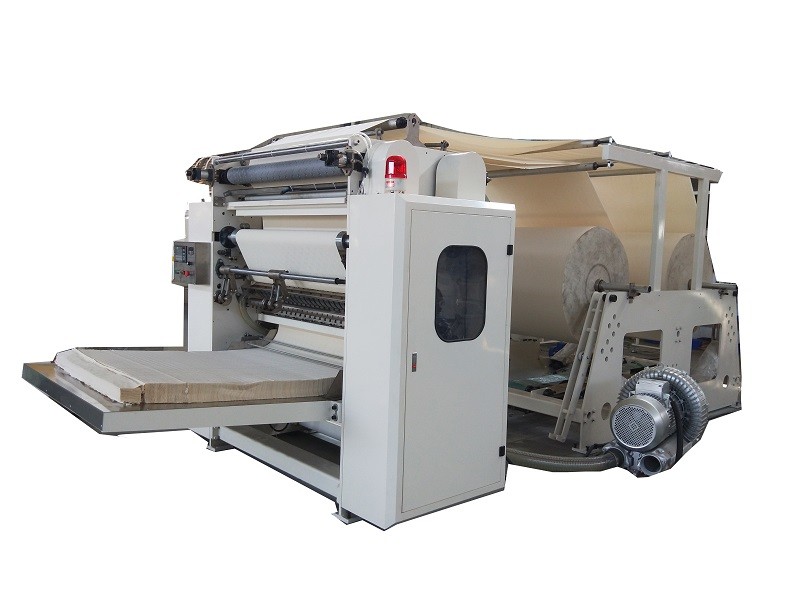

High Performance Tissue Paper Folding Machine Durable Tissue Folding Machine
Product Description:
N folding hand towel machine process paper material after embossing,cut off,interfold become N fold,The products are widely used in hotels, office and kitchen and so on,convenient health.This machine can folding,slitting,counting,with high speed,output orderliness.
Function and Features:
1. Production speed :(60~100)m/min and steel to steel embossing unit.
2. Pneumatic broken paper automatic separation, convenient wear paper.
3. Using synchronous belt transmission, transmission ratio is accurate, low noise.
4. Base paper adapt range, 33-45g/m2 (single ply).
5. To be order two layers glue lamination .(Customized)
Main Technical Parameters:
| HX-N-230/2L/3L/4L/5L/6 | |||||
| Finished products size |
Folding size:210~230 Cutting size:120~230±2mm |
||||
| Raw material size | 460mm | 690mm | 920mm | 1150mm | 1380mm |
| Raw material core diameter | 76.2mm Other sizes are available | ||||
| Speed | 0-100m/min (Depending on the machine model ) | ||||
| Power | Frequency conversion speed regulator | ||||
| Programmable controller | PLC computer controller | ||||
| Folding type | Vacuum suction “ N” fold | ||||
| Transmission unit | Timing belt | ||||
| Counter | Ink marked | ||||
| Embossing unit | Streel to steel embossing | ||||
| Slitting unit | Pneumatic dot slitting | ||||
| Pneumatic system | 3HP Air compressor,mini air pressure 5 kg/cm2 (provided by customer) | ||||
| Total power | According to machine model | ||||
| Dimension |
Depends on Machine Model |
||||
| Weight | Depends on the size and configure | ||||
Our Advantages:
| Experience | Establish in the middle of 1990s, more than 25 years’ experience. |
| Manufacturer | We are 100% factory. |
| One-stop Service | Your One-Stop Solution Supplier, from design, production to shipping. |
| OEM&ODM | OEM or ODM is available. |
| Fast Production | We have a professional design team and a big range of machines. |
| Quality Control | We strictly follow quality management system to insure product quality. |
| Production Ability | Own the factory building and machines to make price competitive. |
Final Products Display:
| Toilet Paper | Toilet Paper |
| Toilet Paper with Core | |
| Toilet Paper without Core | |
| Facial Tissue | Soft Facial Tissue |
| Box Facial Tissue | |
| Pocket Facial Tissue | |
| Kitchen Towel | Napkin Paper |
| Printing Napkin | |
| Kitchen Towel |
Packing & Shipping:
| Packing | Wooden pallet according to specific size of each equipment, we twine thick plastic coating for each machine. |
| Packing Details | Tight the equipment in the pallet without space to ensure no rubbing during the transportation. |
| Shipping | Sea transportation or train. |
