Place of Origin: | Quanzhou, Fujian, China |
---|---|
Brand Name: | HENGXIN |
Certification: | CE, BV and ISO |
Model Number: | HX-R223SD |
Minimum Order Quantity: | 1 set |
Price: | $22,000/set |
Packaging Details: | Pallet |
Delivery Time: | 60 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 20 sets/month |
Condition: | New | Warranty: | 1 Year |
---|---|---|---|
Type: | Toilet Paper Making Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support |
Packing Way: | Pallet | Application: | Paper Industrial |
High Light: | paper slitting and rewinding machine,toilet tissue making machine |

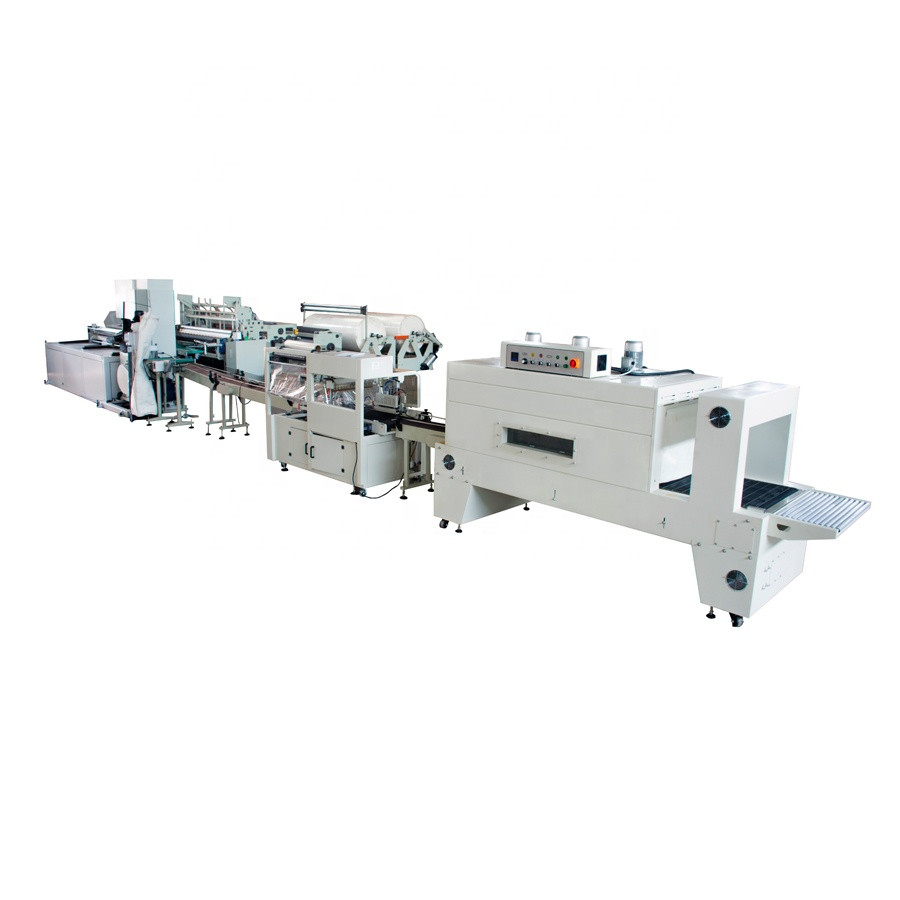

High Speed Toilet Paper Making Machine Single Toilet Roll Packing Machine
Function and Features:
1. HX-R200SD Automatic single toilet roll packing machine features adopt to kitchen towel and toilet paper with core and without core package.
2. Toilet rolls feeding,put the packing film,,vertical sealing,coreless rolls air exhaust,reversing all action control by sever motor,have completely all function , high efficiency, simple operation, specifications to adapt to a wide range, the quick changeover specifications, the advantages of convenient maintenance and low use cost.
3. Stable speed with coreless the maximum speed is 200rolls/min
4. Stable speed with coreless the maximum speed is 150rolls/min
5. It is adjustable the tissue length from 80mm-195mmonly set by electronic.
Main Technical Parameters:
Model | HX-R200SD | |
Packing speed(roll/min) | 20-220rolls/min | |
Maximum production speed(roll/min) | 200rolls/min | |
Film roller maxi width(mm) | 430mm | |
Tissue specification
|
Length(mm) | 80-195 |
Diameter(mm) | 80-125 | |
Total power | 12 KW | |
Motor Power | 3.2KW | |
Cutting blade | double blade | |
Packing film structure | Double roller | |
Machine net weight | 1800KG | |
Equipment noise (db) | ≤78DB | |
Production rate | ≥97% | |
Machine size(LXWXH) | 5500×3300×1600 | |
Voltage | 220V 50HZ | |
Raw material of film | BOPP,SPP,CPP | |
Film Thickness (mm) | 0.018-0.03 |
Our Advantages:
Experience | Establish in the middle of 1990s, more than 25 years’ experience. |
Manufacturer | We are 100% factory. |
One-stop Service | Your One-Stop Solution Supplier, from design, production to shipping. |
OEM&ODM | OEM or ODM is available. |
Fast Production | We have a professional design team and a big range of machines. |
Quality Control | We strictly follow quality management system to insure product quality. |
Production Ability | Own the factory building and machines to make price competitive. |
Final Products Display:
Toilet Paper | Toilet Paper |
Toilet Paper with Core | |
Toilet Paper without Core | |
Facial Tissue | Soft Facial Tissue |
Box Facial Tissue | |
Pocket Facial Tissue | |
Kitchen Towel | Napkin Paper |
Printing Napkin | |
Kitchen Towel |
Packing & Shipping:
Packing | Wooden pallet according to specific size of each equipment, we twine thick plastic coating for each machine. |
Packing Details | Tight the equipment in the pallet without space to ensure no rubbing during the transportation. |
Shipping | Sea transportation or train. |
