Quanzhou Hengxin Paper Machinery Manufacture Co., LTD.
Our company's cultural philosophy is to take science and technology as the guidance, survive by quality, and seek development by reputation.
| Place of Origin: | Quanzhou, Fujian, China |
|---|---|
| Brand Name: | HENGXIN |
| Certification: | CE, BV and ISO |
| Model Number: | HX-TP-T3 |
| Minimum Order Quantity: | 1 set |
| Price: | $50,000/set |
| Packaging Details: | Pallet |
| Delivery Time: | 50 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 sets/month |
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| Type: | Facial Tissue Paper Making Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support |
| Application: | Paper Industrial Production | Color: | Customized |
| Weight: | 4,500 Kg | Total Power: | 10 Kw |
| High Light: | 2800mm toilet roll making machine,iso toilet roll making machine,plc toilet roll making machine |
||

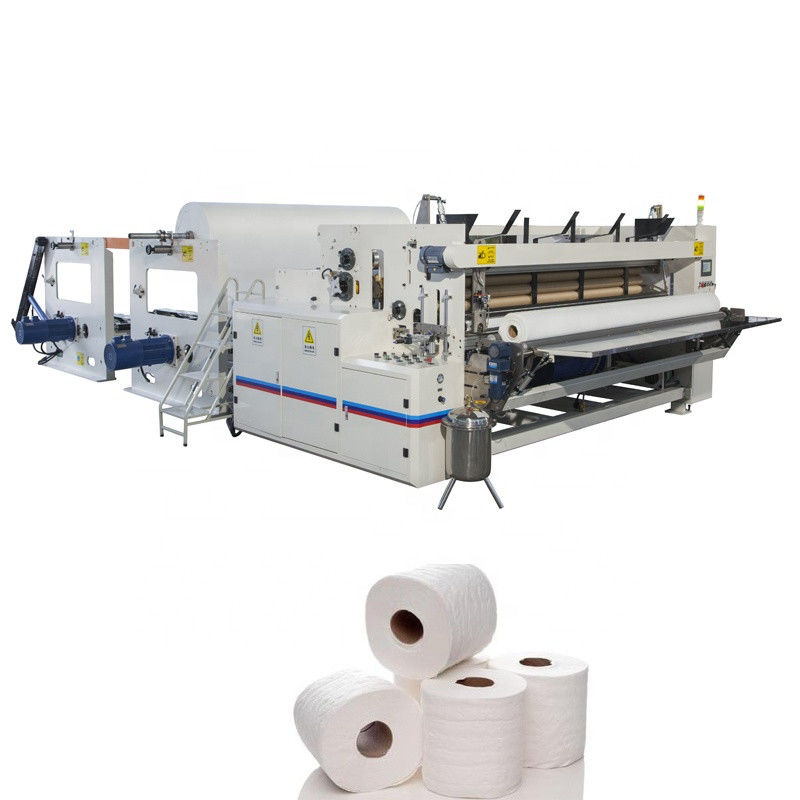

HX-TP-T3 Automatic Small Toilet Tissue Paper Roll Making Machine
This machine have core feeding unit. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Machine Parameters:
| Jumbo Roll Max Width | 2800mm (Other size can be specified) |
| Jumbo Roll Diameter | Φ1100mm(Other size can be specified) |
| Jumbo Roll Inner Diameter | 3inches(76.2mm) (Other size can be specified) |
| Perforation Distance | 4 anvil Blades(115mm)(Other size can be specified) |
| Finished Product Diameter | Φ90~φ280mm |
| Finished Product Core Diameter | φ38~φ76mm |
| Production Speed | 0~230m/min |
| Program Controller | PLC(INVT need to confirm) |

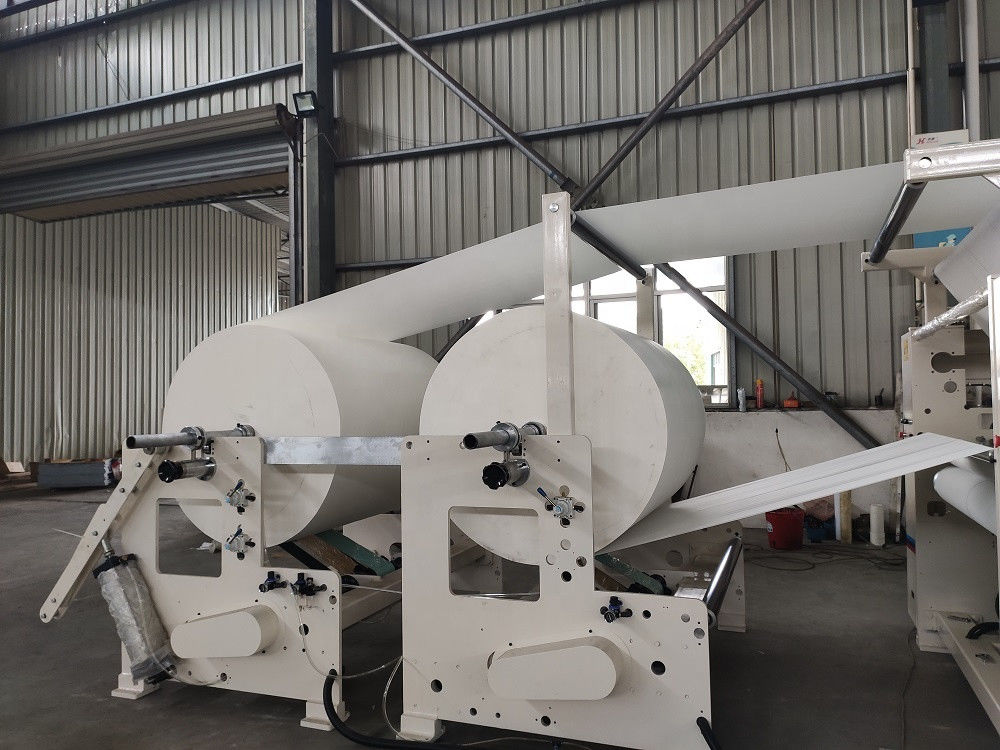

| Unwind Stands | 1 or 3 Stands(Need to be specified) |
| Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user) |
| Main Power | 14KW 380V 50HZ |
| Dimension | 7000*4000*1900(L*W*H) |
| Weight | About 7T |
| Edge-Line Embossing | Steel to steel (Pneumatic Control) |

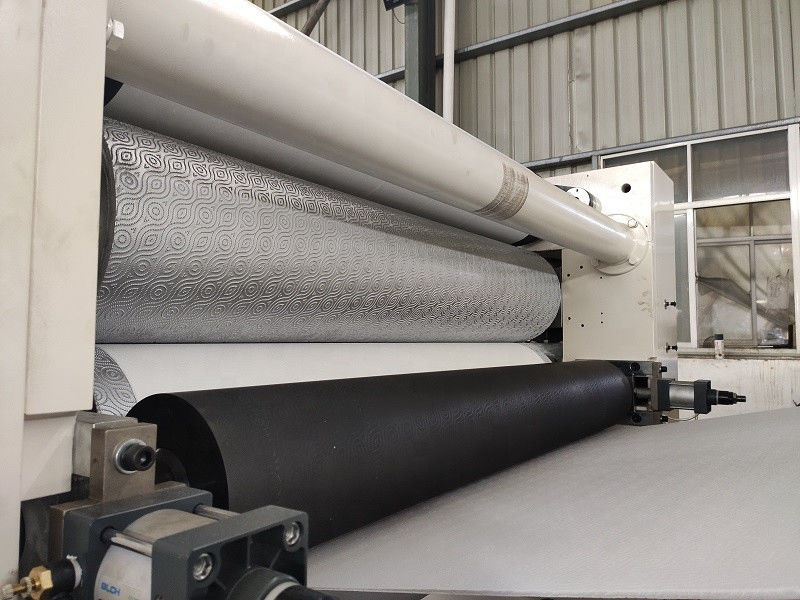

| Full Embossment | Steel to rubber. |
Product Description:
This model is designed to produce "link type" soft/box-drawing facial tissue, that's mean, each sheet link together, draw the top tissue, the head of next sheet will come out the box. And this machine can produce either embossed or without embossed for customers' selection. It has a feature of tight structure, easy operation, stable operation and elaborate designed. We can make the machine with 2 lines, 3 lines ,4 lines, 5 lines and 6 lines.This machine can equip with single color printing or double color printing unit.
Function and Characteristics:
1. Automatic counting points a whole row output.
2. Helical blade shear, vacuum adsorption folding.
3. Stepless speed regulation unwind and can adapt to rewind high-low tension paper material.
4. Adopt PLC computer programming control, pneumatic paper and easy to operate.
5. Frequency conversion control, saves energy.
6. The product width is adjustable, convenient to customer to sell to marketing.
7. Supporting paper rolling pattern device, pattern obvious, flexible to market demand.
8. It can make “V” type single layer towel and two layers glue lamination .(Customized)
Our Advantages:
| Experience | Establish in the middle of 1990s, more than 25 years’ experience. |
| Manufacturer | We are 100% factory. |
| One-stop Service | Your One-Stop Solution Supplier, from design, production to shipping. |
| OEM&ODM | OEM or ODM is available. |
| Fast Production | We have a professional design team and a big range of machines. |
| Quality Control | We strictly follow quality management system to insure product quality. |
| Production Ability | Own the factory building and machines to make price competitive. |
Final Products Display:
| Toilet Paper | Toilet Paper |
| Toilet Paper with Core | |
| Toilet Paper without Core | |
| Facial Tissue | Soft Facial Tissue |
| Box Facial Tissue | |
| Pocket Facial Tissue | |
| Kitchen Towel | Napkin Paper |
| Printing Napkin | |
| Kitchen Towel |
Packing & Shipping:
| Packing | Wooden pallet according to specific size of each equipment, we twine thick plastic coating for each machine. |
| Packing Details | Tight the equipment in the pallet without space to ensure no rubbing during the transportation. |
| Shipping | Sea transportation or train. |
