Quanzhou Hengxin Paper Machinery Manufacture Co., LTD.
Our company's cultural philosophy is to take science and technology as the guidance, survive by quality, and seek development by reputation.
| Place of Origin: | Quanzhou, Fujian, China |
|---|---|
| Brand Name: | HENGXIN |
| Certification: | CE, BV and ISO |
| Model Number: | HX-SJZ-1575 |
| Minimum Order Quantity: | 1 set |
| Price: | $60,000/set |
| Packaging Details: | Pallet |
| Delivery Time: | 50 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 sets/month |
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| Type: | Toilet Paper Making Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support |
| High Light: | paper slitting and rewinding machine,toilet tissue making machine |
||

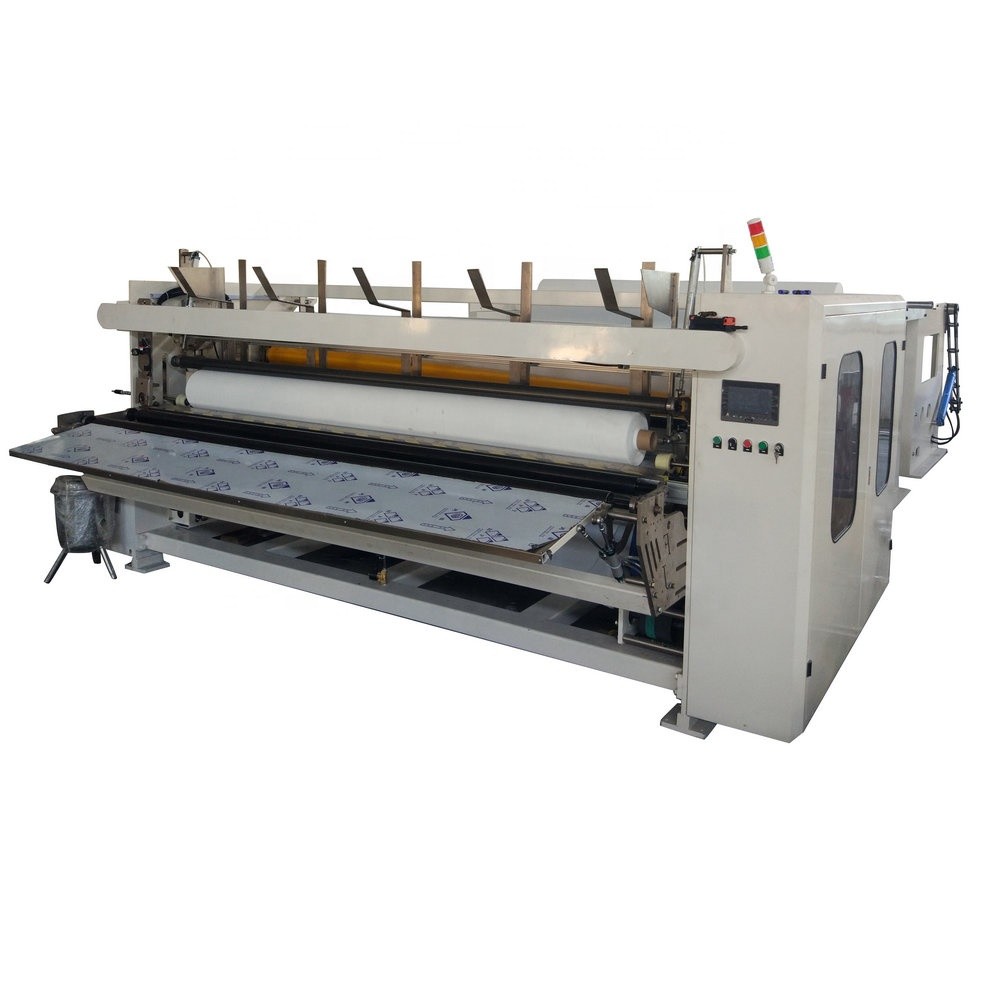

Manufacturer Direct Wall Type Automatic Toilet Paper Rewinding Machine
Function and Features:
1. This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, core feeding; auto edge trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Main Technical Parameters:
| Model |
HX-SJZ-1575 Wall Type Automatic Toilet Paper Rewinding Machine |
| Production Speed | 0~230m/min |
| Jumbo Roll Max Width |
1000mm-3000mm |
| Jumbo Roll Diameter | Φ1100mm(Other size can be specified) |
| Jumbo Roll Inner Diameter |
3inches(76.2mm) (Other size can be specified) |
| Perforation Distance |
4 anvil Blades(90-150mm)(Other size can be specified) |
| Finished Product Diameter | Φ80~φ280mm |
| Finished Product Core Diameter | φ38~φ48mm |
| Program Controller |
PLC(INVT) |
| Unwind Stands |
1 or 3 Stands(Need to be specified) |
| Pneumatic System |
3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user) |
| Jumbo Roll Layers | 1 to 3 layers,14~30gsm toilet paper or kitchen towel |
|
Edge-Line Embossing(Optionnal) |
Steel to steel (Pneumatic Control) |
|
Embossment (Optional) |
Picture one with one set embossing roller, steel to rubber.( Double set embossing roller is optional.) |
| Voltage | 380V 50HZ |
Our Advantages:
| Experience | Establish in the middle of 1990s, more than 25 years’ experience. |
| Manufacturer | We are 100% factory. |
| One-stop Service | Your One-Stop Solution Supplier, from design, production to shipping. |
| OEM&ODM | OEM or ODM is available. |
| Fast Production | We have a professional design team and a big range of machines. |
| Quality Control | We strictly follow quality management system to insure product quality. |
| Production Ability | Own the factory building and machines to make price competitive. |
Final Products Display:
| Toilet Paper | Toilet Paper |
| Toilet Paper with Core | |
| Toilet Paper without Core | |
| Facial Tissue | Soft Facial Tissue |
| Box Facial Tissue | |
| Pocket Facial Tissue | |
| Kitchen Towel | Napkin Paper |
| Printing Napkin | |
| Kitchen Towel |
Packing & Shipping:
| Packing | Wooden pallet according to specific size of each equipment, we twine thick plastic coating for each machine. |
| Packing Details | Tight the equipment in the pallet without space to ensure no rubbing during the transportation. |
| Shipping | Sea transportation or train. |
