Quanzhou Hengxin Paper Machinery Manufacture Co., LTD.
Our company's cultural philosophy is to take science and technology as the guidance, survive by quality, and seek development by reputation.
| Place of Origin: | Quanzhou, Fujian, China |
|---|---|
| Brand Name: | HENGXIN |
| Certification: | CE, BV and ISO |
| Model Number: | HX-131B |
| Minimum Order Quantity: | 1 set |
| Price: | $22,000/set |
| Packaging Details: | Pallet |
| Delivery Time: | 50 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 sets/month |
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| Type: | Facial Tissue Paper Making Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support |
| Color: | Customized | Application: | Paper Industrial Production |
| High Light: | facial tissue paper machine,auto paper folding machine |
||

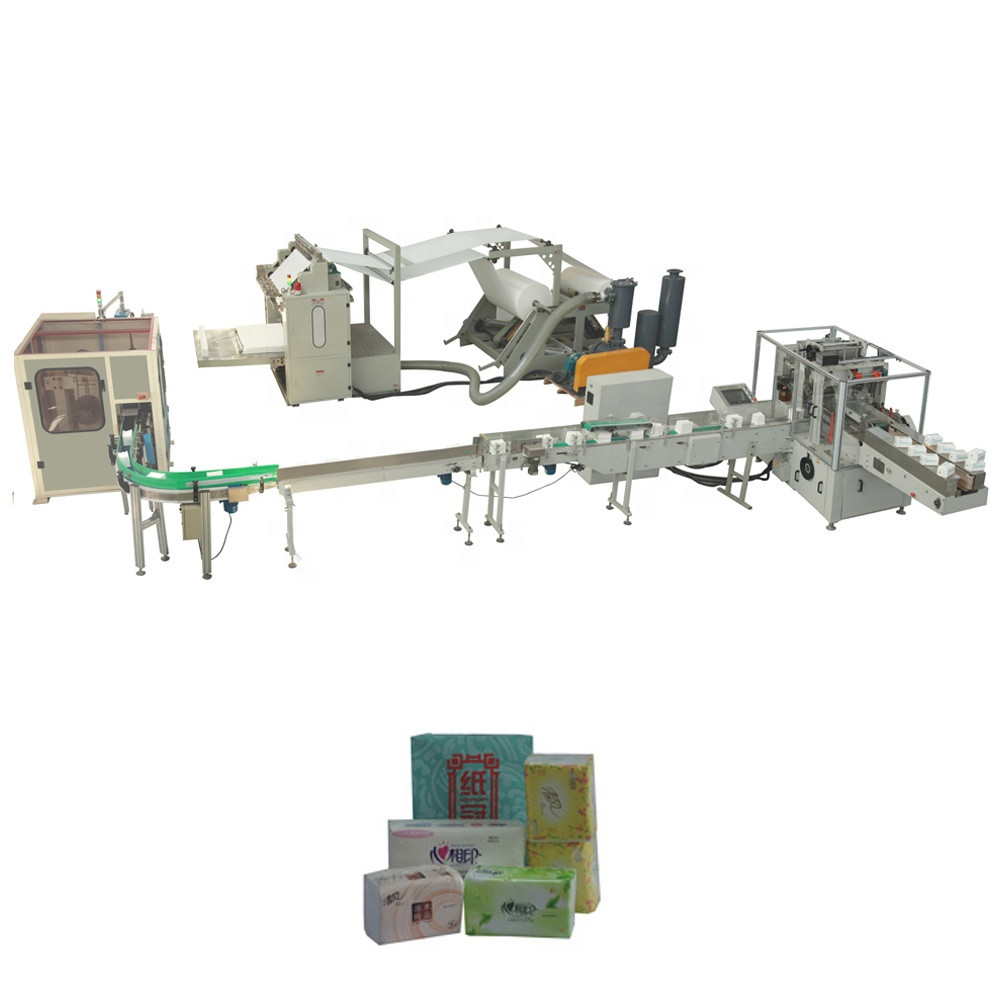

Durable Facial Tissue Paper Making Machine Wide Packing Range Easy To Adjust
Function and Features:
1. Adopt automatic feeding, open box, insert box, coding and sealing, reasonable compact structure, easy operation.
2. Adopt Servo motor, touch screen and PLC programmable control system, interface display make it simple and clear, high degree of automation, humanized.
3. Using photoelectric automatic tracking system, only packing when it sense the paper, which can save packing material.
4. Wide packing range, easy to adjust, can change different size easily.
5. Change size no need to change mould, only need to adjust some buttons, PLC will show packing speed and counting.
6. If paper not in the right position, machine will automatically stop, and machine has main drive motor overload protection device, which make it safe working.
7. Upside open safety cover is optional for client, which is easy to operate and looks nice.
8. Low cost, use imported glue machine, 0.25mm-0.36mm, spray the glue needed.
9. Hot melt glue machine is optional for client if client use hot melt glue or mechanical brush glue sealing.
Main Technical Parameters:
| Model | HXZ-130B |
| Packing Speed | 30-80 Box/min |
| Packing Size Range | Customizable |
| Packing Paper Requirement | 250-450g/m3 |
| Power | 1.5KW |
| Voltage | Three phase four wire 380 V, 50 Hz |
| Noise | ≤80dB |
| Air Pressure | 0.5-0.8 Mpa |
| Air Consumption | 120-160L/min |
| Dimension | 3500×1300×1800 mm |
| Weight | 1500Kg |
Our Advantages:
| Experience | Establish in the middle of 1990s, more than 25 years’ experience. |
| Manufacturer | We are 100% factory. |
| One-stop Service | Your One-Stop Solution Supplier, from design, production to shipping. |
| OEM&ODM | OEM or ODM is available. |
| Fast Production | We have a professional design team and a big range of machines. |
| Quality Control | We strictly follow quality management system to insure product quality. |
| Production Ability | Own the factory building and machines to make price competitive. |
Final Products Display:
| Toilet Paper | Toilet Paper |
| Toilet Paper with Core | |
| Toilet Paper without Core | |
| Facial Tissue | Soft Facial Tissue |
| Box Facial Tissue | |
| Pocket Facial Tissue | |
| Kitchen Towel | Napkin Paper |
| Printing Napkin | |
| Kitchen Towel |
Packing & Shipping:
| Packing | Wooden pallet according to specific size of each equipment, we twine thick plastic coating for each machine. |
| Packing Details | Tight the equipment in the pallet without space to ensure no rubbing during the transportation. |
| Shipping |
Sea transportation or train. |
