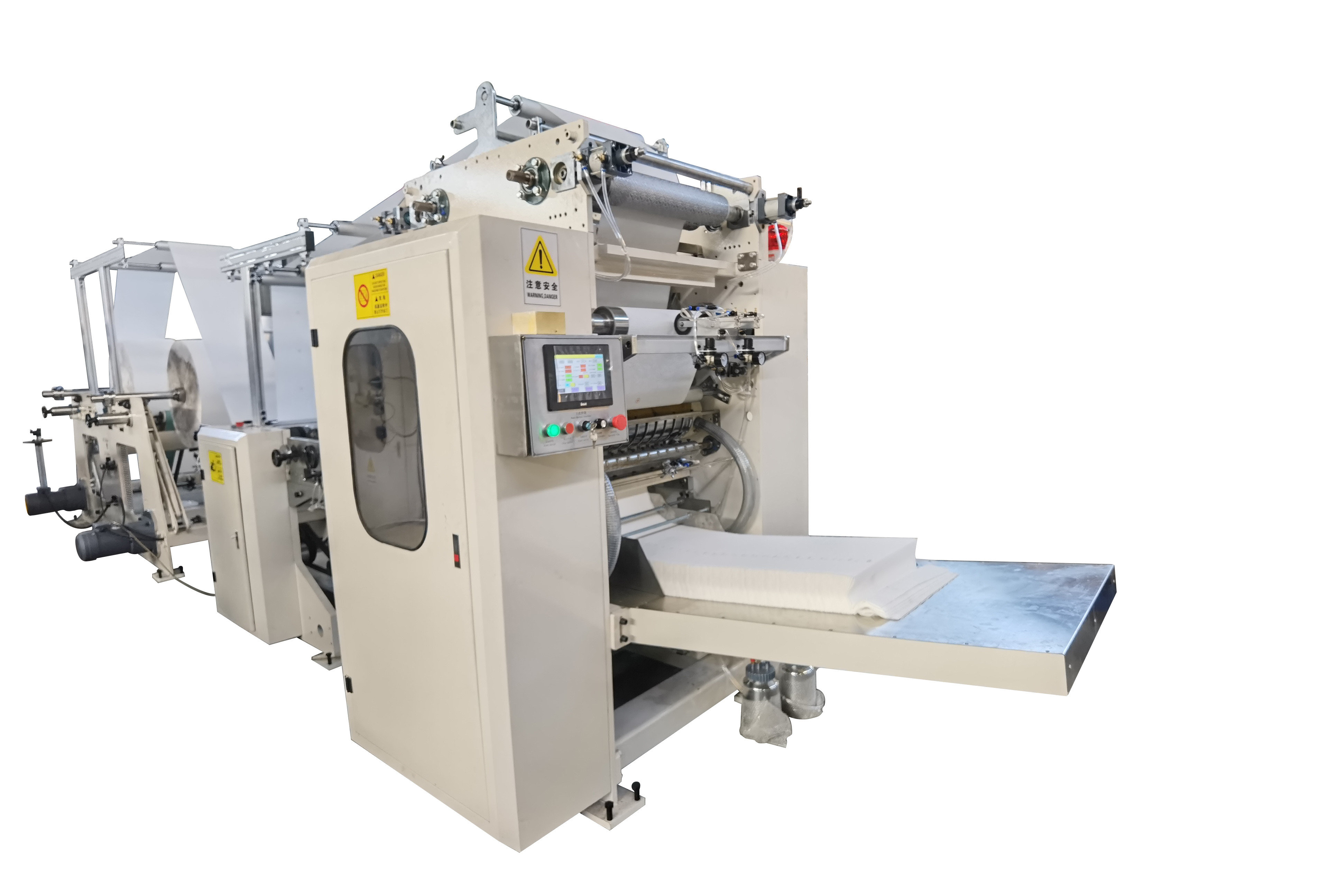

600pcs/Min 10000w CE One Color Facial Tissue Paper Making Machine
Machine Features:
1. Our facial tissue paper fold machine equips with pneumatic controlled embossing rollers.
2. This Facial tissue paper making machine adopts wallboard machine frame, machine runs stably, speed is 120meters per minute.
3. It adopts pneumatic jumbo roll loading, stepless speed control and automatic paper tension control.
4. Equipped with Roots vacuum pump which runs stably and supply excellent air adsorption.
Main Technical Parameters:
| Model | HX-180 |
| Machine Size | 6000*3200*1900mm |
| Folding Speed | 500~1000 pcs/min |
| Max Diameter | φ1200mm |
| Core Inner Diameter | φ76.2mm |
| Power Type | 380V 50Hz |
| Machine Total power | 11KW |
| Machine Net Weight | 4500KG |
Product Description:
Facial tissue machine uses tissue jumbo roll to process folded into "V" type paper processing equipment.The machine adopts the vacuum adsorption principle and auxiliary manipulator folding.
Function and Characteristics:
1. Automatic counting points a whole row output.
2. Helical blade shear, vacuum adsorption folding.
3. Stepless speed regulation unwind and can adapt to rewind high-low tension paper material.
4. Adopt PLC computer programming control, pneumatic paper and easy to operate.
5. Frequency conversion control, saves energy.
6. The product width is adjustable, convenient to customer to sell to marketing.
7. Supporting paper rolling pattern device, pattern obvious, flexible to market demand.
8. It can make “V” type single layer towel and two layers glue lamination .(Customized)
Package & Shipping:
Our Advantages:
| Experience | Establish in the middle of 1990s, more than 25 years’ experience. |
| Manufacturer | We are 100% factory. |
| One-stop Service | Your One-Stop Solution Supplier, from design, production to shipping. |
| OEM&ODM | OEM or ODM is available. |
| Fast Production | We have a professional design team and a big range of machines. |
| Quality Control | We strictly follow quality management system to insure product quality. |
| Production Ability | Own the factory building and machines to make price competitive. |

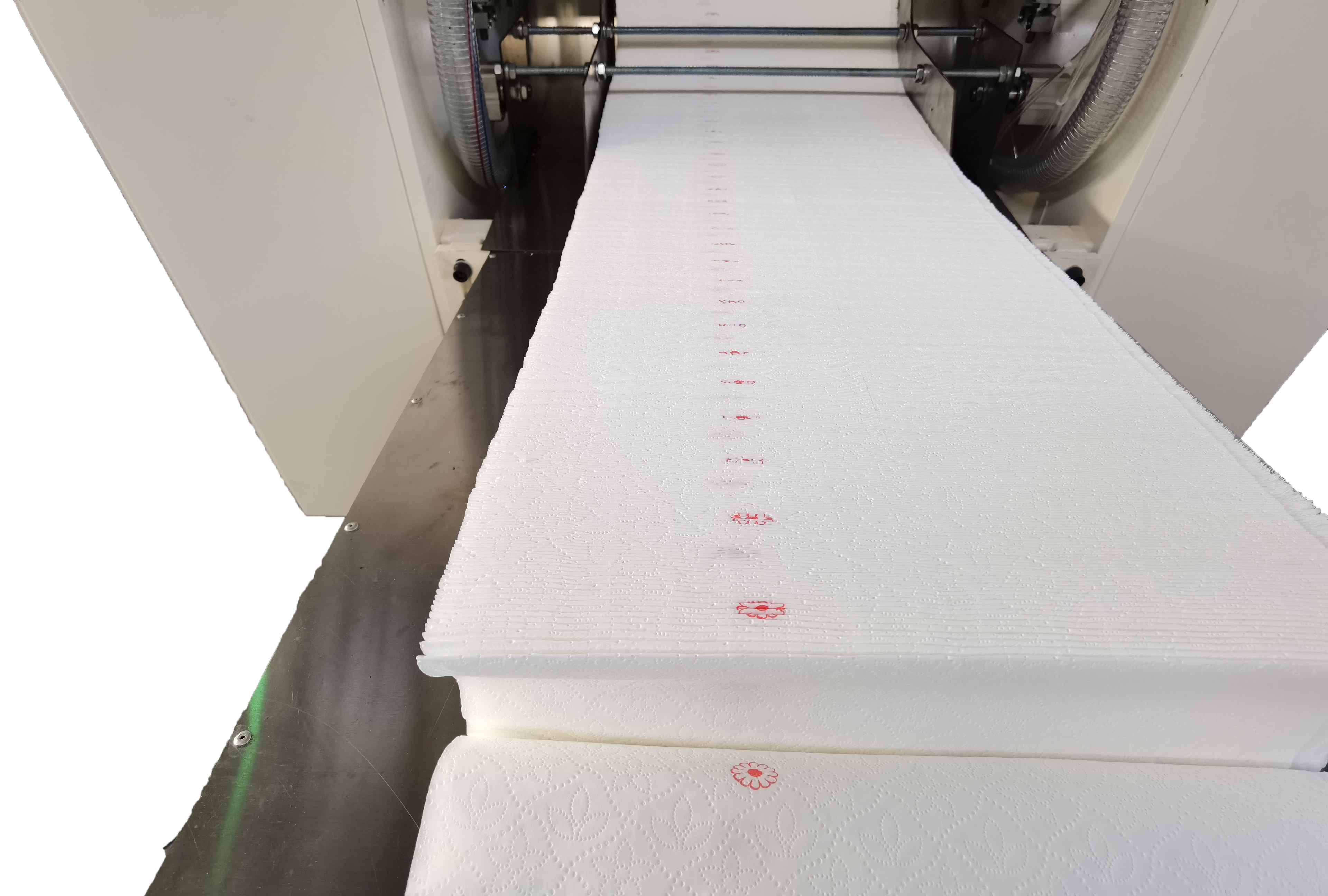

Final Products Display:
| Toilet Paper | Toilet Paper |
| Toilet Paper with Core | |
| Toilet Paper without Core | |
| Facial Tissue | Soft Facial Tissue |
| Box Facial Tissue | |
| Pocket Facial Tissue | |
| Kitchen Towel | Napkin Paper |
| Printing Napkin | |
| Kitchen Towel |
Packing & Shipping:
| Packing | Wooden pallet according to specific size of each equipment, we twine thick plastic coating for each machine. |
| Packing Details | Tight the equipment in the pallet without space to ensure no rubbing during the transportation. |
| Shipping | Sea transportation or train. |
