Place of Origin: | Quanzhou, Fujian, China |
---|---|
Brand Name: | HENGXIN |
Certification: | CE, BV and ISO |
Model Number: | HX-T84SD |
Minimum Order Quantity: | 1 set |
Price: | $30,000/set |
Packaging Details: | Pallet |
Delivery Time: | 60 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 20 sets/month |
Condition: | New | Warranty: | 1 Year |
---|---|---|---|
Type: | Facial Tissue Making Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support |
Color: | Customized | Application: | Paper Industrial Production |
High Light: | auto paper folding machine,facial tissue making machine |

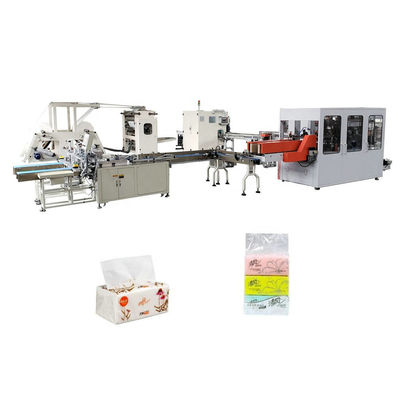

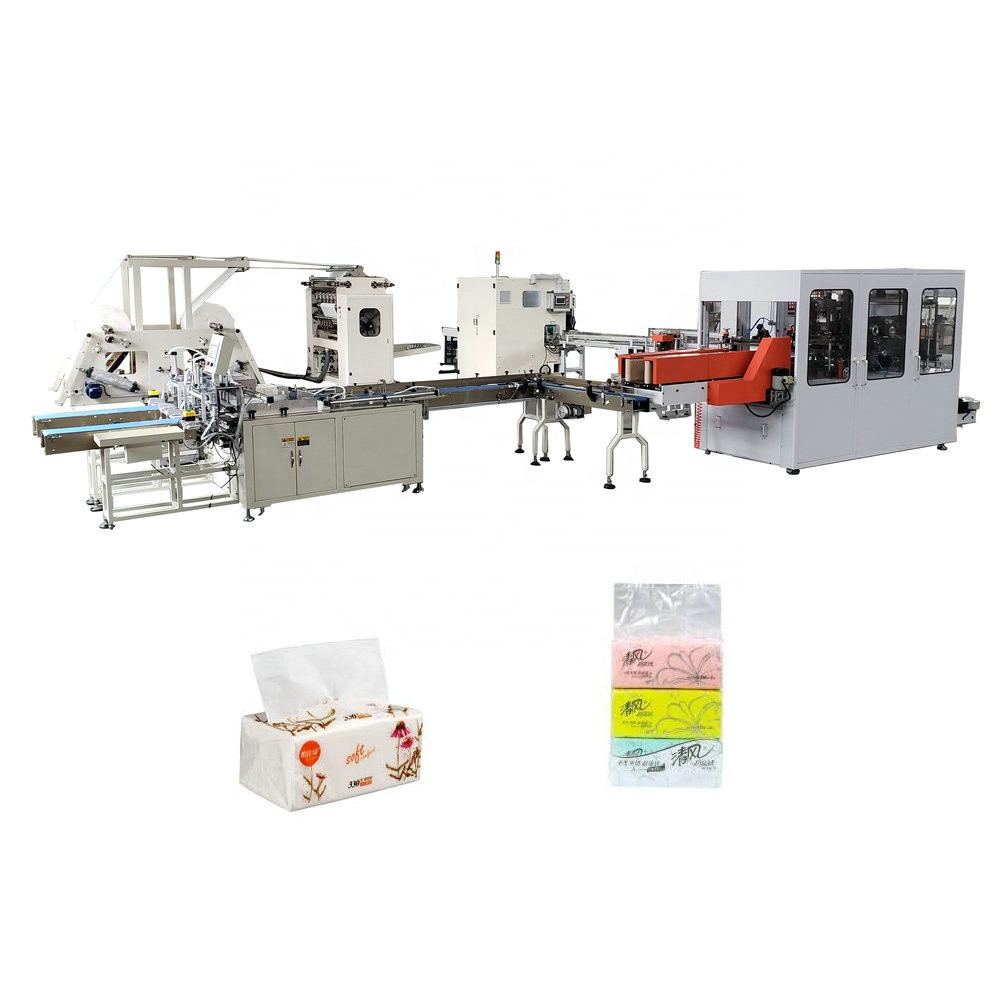

Manufacturer Direct Customized HX-T84SD Automatic Facial Tissue Packing Machine
Product Description:
HX-T84SD Automatic facial tissue packing machine is used for bagging and packing of facial tissue.
Main Technical Parameters:
Technical Specifications | Description | Remark |
Scope of application |
Facial tissue, hand towel,napkin tissue |
|
Infeed |
ASF Full automatic |
Five sections of intelligent flexible feeding mode |
Max.design mechanical speed |
≤ 80 bags/min |
Related to specification of packing |
Max. stable operation speed |
65 bags/min |
Related to specification of packing |
Tissue length range (finished product) |
120 mm- 210 mm |
Over this size can be customized |
Tissue height range(finished product) |
40 mm- 100 mm | |
Tissue width range(finished product) |
90 mm- 105 mm | |
Spare parts for change size |
3 set |
Standard configuration quantity, the accurate specifications drawn up by the user
|
Machine size |
Length 4600 mm Width 3620 mm Height 1770 mm |
Standard size |
Machine weight |
About 3000 KG |
|
Packing raw material |
CPP film |
|
Film Thickness |
0.04mm-0.055mm | |
Max film diameter |
400 mm |
Over this size can be customized |
Film core diameter |
76mm |
In accordance with international standards |
Max film width |
340mm |
Over this size can be customized |
Air pressure |
Minimum air pressure 5MPA |
Equipped by user |
Power supply |
380V/50HZ |
Following China's electric power standard |
Total drive power |
4.8 KW |
The sum of main motor, servo motor, Sum of speed regulating motor power |
Total heating power |
4.6 KW |
Side seal, side sealing part of heating power combined |
Voltage variation |
+/-10% |
In accordance with international standards |
I/O Input/ I/O |
24VDC |
Electrical control system control circuit input |
I/O Output/ I/O |
24VDC |
Electrical control system control circuit output |
Machine run control pattern |
Three axle servo and axle location control |
The electronic CAM motion curve |
Equipment main transmission mode |
20crmnti mechanical-cam+The electronic CAM drive |
|
Machine standard colour |
Gray, International color RAL 7032 |
The international color card color number RAL7032 |
Packing format |
Three-dimensional wrap |
Vertical sealing first and then two side sealing |
Our Advantages:
Experience | Establish in the middle of 1990s, more than 25 years’ experience. |
Manufacturer | We are 100% factory. |
One-stop Service | Your One-Stop Solution Supplier, from design, production to shipping. |
OEM&ODM | OEM or ODM is available. |
Fast Production | We have a professional design team and a big range of machines. |
Quality Control | We strictly follow quality management system to insure product quality. |
Production Ability | Own the factory building and machines to make price competitive. |
Final Products Display:
Toilet Paper | Toilet Paper |
Toilet Paper with Core | |
Toilet Paper without Core | |
Facial Tissue | Soft Facial Tissue |
Box Facial Tissue | |
Pocket Facial Tissue | |
Kitchen Towel | Napkin Paper |
Printing Napkin | |
Kitchen Towel |
Packing & Shipping:
Packing | Wooden pallet according to specific size of each equipment, we twine thick plastic coating for each machine. |
Packing Details | Tight the equipment in the pallet without space to ensure no rubbing during the transportation. |
Shipping | Sea transportation or train. |
