Quanzhou Hengxin Paper Machinery Manufacture Co., LTD.
Our company's cultural philosophy is to take science and technology as the guidance, survive by quality, and seek development by reputation.
| Place of Origin: | Quanzhou, Fujian, China |
|---|---|
| Brand Name: | HENGXIN |
| Certification: | CE, BV and ISO |
| Model Number: | HX-DHX-152 |
| Minimum Order Quantity: | 1 set |
| Price: | $30,000/set |
| Packaging Details: | Pallet |
| Delivery Time: | 50 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 sets/month |
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| Type: | Facial Tissue Paper Making Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support |
| Application: | Paper Industrial | Color: | White And Customized |
| High Light: | facial tissue paper machine,auto paper folding machine |
||

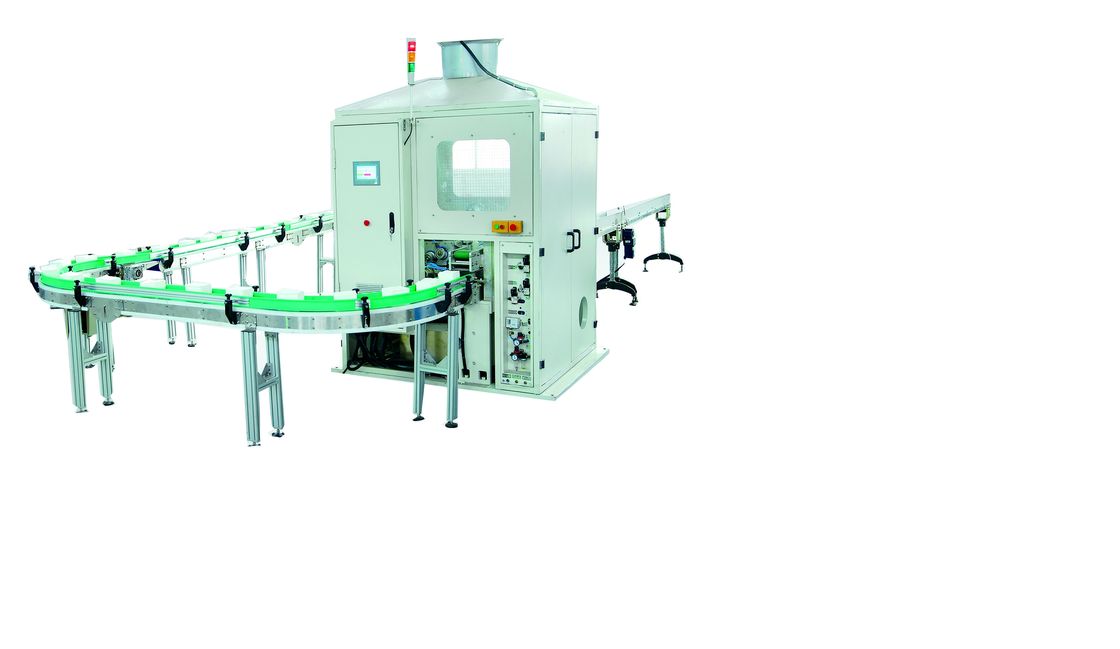

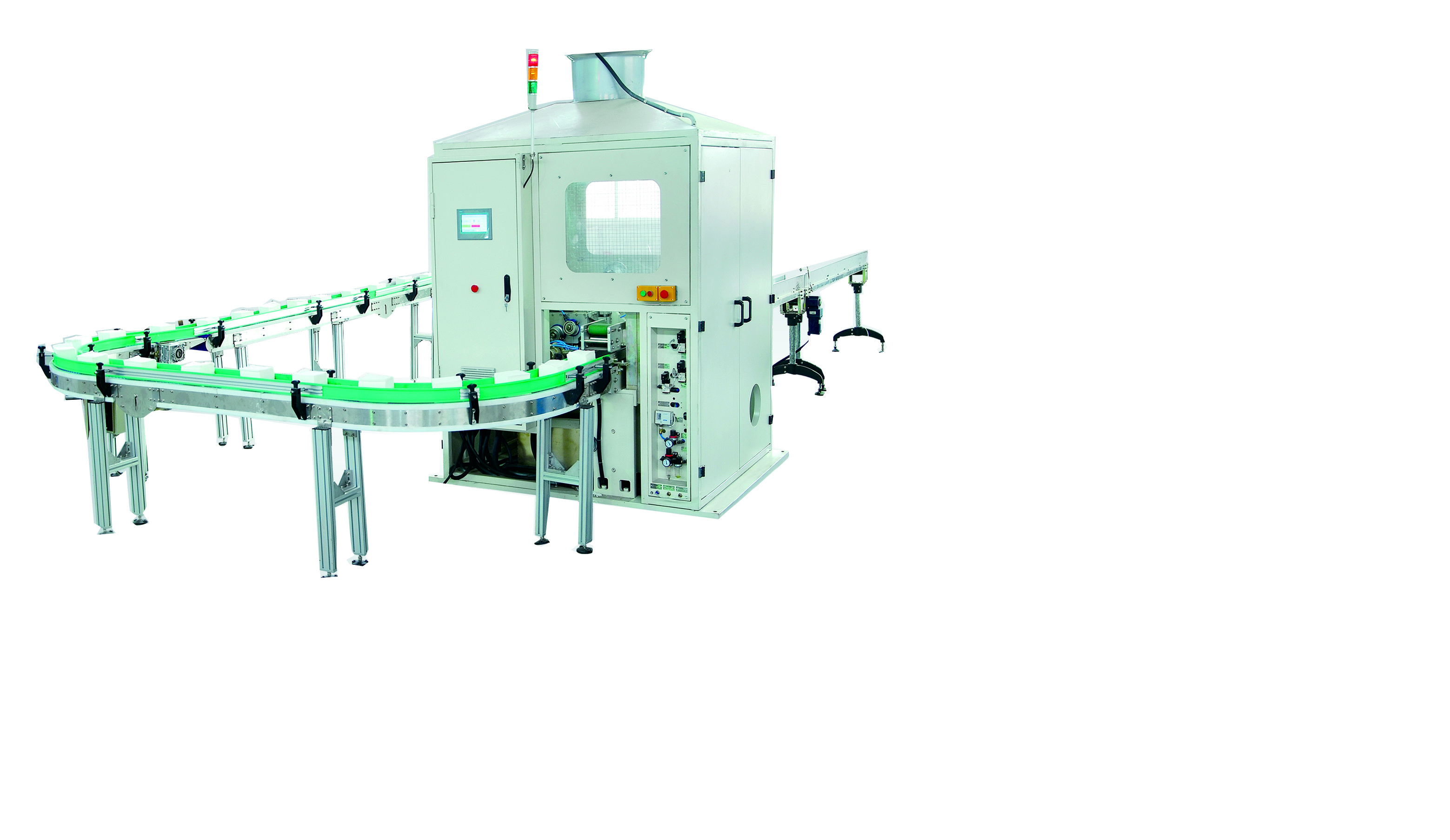

Single Automatic High Quality Channel Log Saw Tissue Packing Machine
Product Description:
Cyclotron paper cutter is used to automatically cut off a row folded and round roll paper towel products, such as the removable tissue or toilet roll paper. The whole machine adopts servo drive technology and frequency control of motor speed and enhance the stability of paper cutting, and improves the cutting precision of tissue and to cut off the end face flat . Cutting length within the scope of the machine allows arbitrary adjustable. Fixedautomatic knife grinding wheel Angle, ensure the quality of the sharpeningknife. Knife grinding place often blow compressed air for cooling, and can match the special cooling fluid.
Main Technical Parameters:
| Designation | Parameter values |
| The length of the none cut off facial tissue | minimum 500mm |
| The Height of tissue | 30~130mm |
| Machine Speed | 20~150cut/min |
| Operating speed | 20~120cut/min |
| Round blade outer diamete | Φ610mm |
| Paper cutting circular knife top speed | 980R/min |
| Finished products specification | 70~300mm |
| Paper width | 70~110mm |
| Cutting Length | 70~300mm |
| Left-over Length | 20~65mm |
| Power | 11KW |
| Power supply | 380V 50Hz |
| Air source | 0.5~0.8MPa |
| Machine Size | 4600*1700*2500mm |
| Weight of machine | 2300~2600kg |
| Brake | Parameter setting (auto/manual) |
| Stepping sharpening knife | Parameter setting (auto) |
| Pneumatic sharpening knife | Parameter setting (auto/manual) |
| Blow air | Without |
| The total pressure switch | Value (not) |
| Human-computer interface | Can be customized(DELTA) |
| Frequency changer | DELTA |
| Servo Drive | DELTA |
Our Advantages:
| Experience | Establish in the middle of 1990s, more than 25 years’ experience. |
| Manufacturer | We are 100% factory. |
| One-stop Service | Your One-Stop Solution Supplier, from design, production to shipping. |
| OEM&ODM | OEM or ODM is available. |
| Fast Production | We have a professional design team and a big range of machines. |
| Quality Control | We strictly follow quality management system to insure product quality. |
| Production Ability | Own the factory building and machines to make price competitive. |
Final Products Display:
| Toilet Paper | Toilet Paper |
| Toilet Paper with Core | |
| Toilet Paper without Core | |
| Facial Tissue | Soft Facial Tissue |
| Box Facial Tissue | |
| Pocket Facial Tissue | |
| Kitchen Towel | Napkin Paper |
| Printing Napkin | |
| Kitchen Towel |
Packing & Shipping:
| Packing | Wooden pallet according to specific size of each equipment, we twine thick plastic coating for each machine. |
| Packing Details | Tight the equipment in the pallet without space to ensure no rubbing during the transportation. |
| Shipping | Sea transportation or train. |
